| Price | 12,800৳ |
| Status | In Stock |
| Product Code | MbwqYtGALdP06lyK |
| Brand | Asus |
| Motherboard Information | ||
| Chipset | AMD A520 | |
| Supported CPU | AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop | |
| Supported Memory | Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHz 1DPC 2R max speed 3733 MHz 2DPC 1R max speed 3866 MHz 2DPC 2R max speed 3466 MHz Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory | |
| Onboard Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out | |
| Onboard LAN | Realtek GbE LAN chip (10/100/1000 Mbit) | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| PCI | AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors 1 x PCIe 3.0 x16 (x16 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 | |
| M.2 Socket | 1 x M.2 Socket 3, with M Key, Type 2242/ 2260/ 2280/ 22110 (PCIE 3.0 x4 and SATA modes) storage devices support | |
| Memory Type | DDR4 Slots 4 x DDR4 memory slots, support up to 64GB | |
| Graphics | 1 x DisplayPort 1.2 1 x D-Sub 1 x HDMI 2.1 (4K@60Hz) | |
| Max Shared Graphics | 16 GB | |
| HDMI | HDMI 1 x HDMI 2.1(4K@60HZ) D-Sub (s) 1 x D-Sub | |
| USB (s) | 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x USB 3.2 Gen 1 connector (supports USB Type C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 5000 Series/ 3000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) AMD Ryzen 4000 G-Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports Support RAID 0, 1, 10 | |
| Internal I/O Ports | AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors : 1 x M.2 Socket 3, with M Key, Type 2242/ 2260/ 2280/ 22110 (PCIE 3.0 x4 and SATA modes) storage devices support AMD A520 Chipset : 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 | |
| TPM (Trusted Platform Module) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) | |
| Warranty | ||
| Manufacturing Warranty | 03 years warranty | |

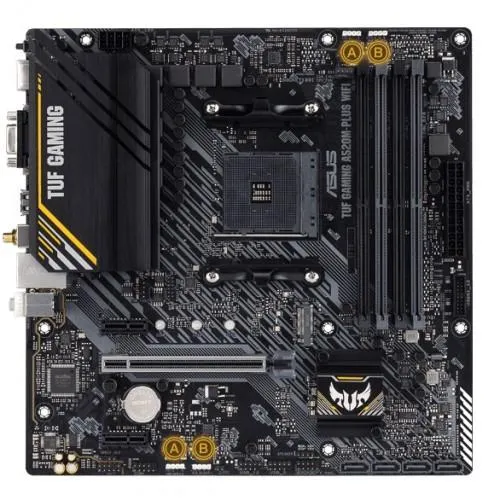

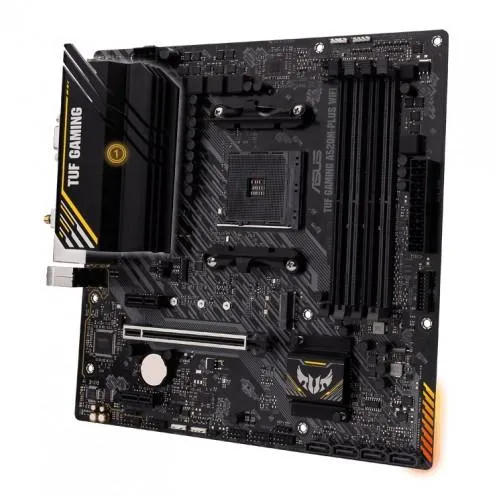

The Asus TUF GAMING A520M-PLUS WI-FI AM4 AMD Micro ATX Motherboard distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case. With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory, TUF Gaming A520M-Plus is the perfect foundation for your next high-core-count battle rig. TUF Gaming motherboards are designed to be easy to set up and configure just the way you want — even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity. TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger. TUF Gaming A520M-Plus provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere. Turbo LAN is a network-optimization software for customizable packet prioritization. With cFosSpeed traffic-shaping technology, it allows you to configure application priority via an intuitive interface, and reduces network lag.
