| Price | 8,800৳ |
| Status | In Stock |
| Product Code | X4LuKSvNRYm5J3ba |
| Brand | Gigabyte |
| Motherboard Information | ||
| Chipset | Intel H410 Express Chipset | |
| Supported CPU | Support for 10th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel Core i5 processors/Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1200 package | |
| Supported Memory | Intel Core i5/ i3/ Pentium/ Celeron processors: Support for DDR4 2666/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules | |
| Onboard Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out | |
| Onboard LAN | Intel GbE LAN chip (1 Gbit/100 Mbit) | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| PCI | 1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots | |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/ x2 SSD support) | |
| Memory Type | DDR4 Dual channel memory architecture | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz 1 x HDMI ports, supporting a maximum resolution of 4096 x 2160 @30 Hz | |
| Max Shared Graphics | 512MB | |
| HDMI | 1 x HDMI | |
| USB (s) | 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/ 1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280 SATA and PCIe x4/ x2 SSD support) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 headers 1 x Clear CMOS jumper | |
| TPM (Trusted Platform Module) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) | |
| Others | Support for APP Center @BIOS Ambient LED EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install | |
| Warranty | ||
| Manufacturing Warranty | 03 Years | |

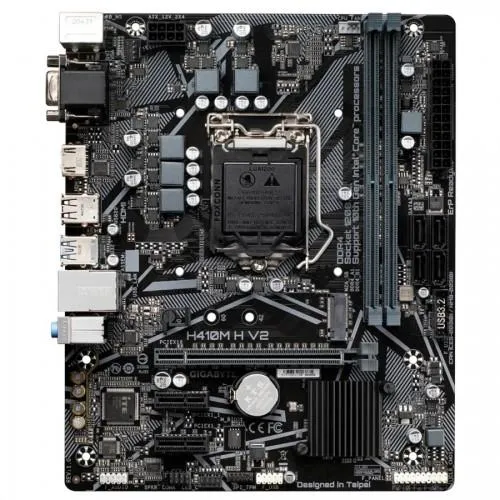

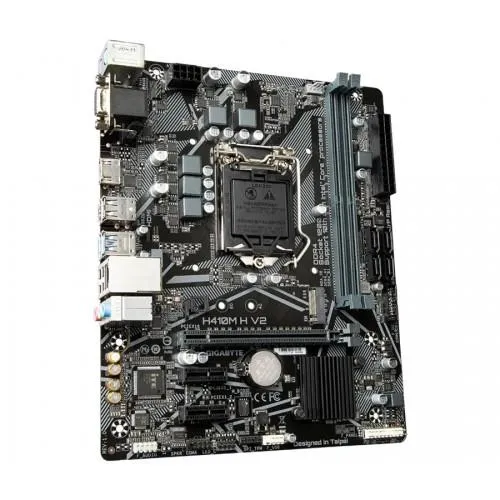

The Gigabyte H410M H V2 10th & 11th Gen Micro ATX Motherboard is made for Intel 10th and 11th Generation processors. The Gigabyte H410M H V2 11th Gen Motherboard has two DIMM RAM slots available which can support Bus Speed of up to 2933MHz. The motherboard supports HDMI and D-Sub graphical output ports and can display two displays at once. The Gigabyte motherboard also comes with 8-Channel HD Audio with High Quality Audio Capacitors which provides crystal clear sound all around. The mother also provides you with NVMe PCIe Gen3 x4 2280 M.2 Connector, Intel GbE LAN with cFosSpeed Internet Accelerator Software, and more.
