| Price | 7,000৳ |
| Status | In Stock |
| Product Code | kh9tTZzc4FDR362N |
| Brand | Gigabyte |
| Motherboard Information | ||
| Chipset | AMD B450 | |
| Supported CPU | AM4 Socket Support for AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ Ryzen 1st Generation Processors | |
| Supported Memory | - Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules - Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) - Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules - Support for Extreme Memory Profile (XMP) memory modules | |
| Onboard Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out | |
| Onboard LAN | Realtek GbE LAN chip (10/100/1000 Mbit) | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| PCI | 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slot conforms to PCI Express 2.0 standard.) | |
| M.2 Socket | 1 x M.2 Socket 3 connector 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) Supports only M.2 SATA SSDs when using an AMD Athlon 200-series/ 7th Generation A-series or Athlon APU. | |
| Memory Type | Dual channel memory architecture 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory | |

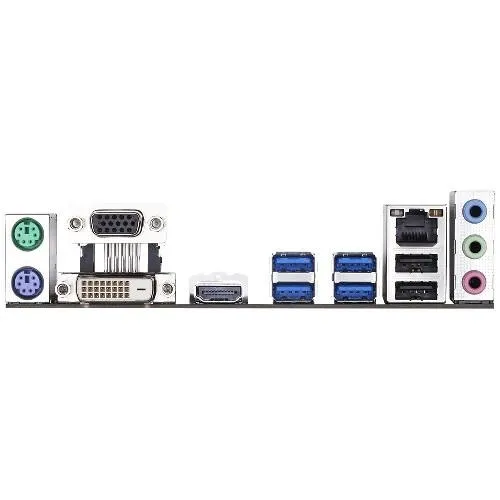

| Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920x1200 at 60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200 at 60 Hz The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160 at 60 Hz(Note) Support for HDMI 2.0 version and HDCP 2.2.(Note) Maximum shared memory of 2 GB (Note) Actual support may vary by CPU. | |
| Max Shared Graphics | 2 GB | |
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160 at 60 Hz Support for HDMI 2.0 version and HDCP 2.2. 1 x HDMI port | |
| USB (s) | Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) Supports only M.2 SATA SSDs when using an AMD Athlon 200-series/ 7th Generation A-series or Athlon APU. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header | |
| TPM (Trusted Platform Module) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) | |
| Warranty | ||
| Manufacturing Warranty | 03 years warranty | |
Gigabyte B450M S2H UAMD AM4 Motherboard introduce the latest Ryzen 2000 series processors to provide the computing power for gaming need. GIGABYTE’s 400 series motherboards perfectly fit the latest AMD Ryzen 2000 series processors’ computing performance with more features and more control. Users can enjoy the benefits brought by AMD Ryzen 2000 series processors which maximize your PC’s potential with AMD StoreMI technology. By adding this AMD StoreMI, It making the PC experience fast, smooth and easy, optimizing computer responsiveness from system boot to application launch, offering SSD performance with HDD capacity at an affordable cost and also quickly accessing key files by automatically learning users’ computing behaviors.
This exclusive Durable Motherboard support AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ Ryzen 1st Generation Processors. Here used AMD B450 Chipset. This exclusive Gigabyte Motherboard supports Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs, HDMI, DVI-D, D-sub Ports for Multiple Display, Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support, GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management, RGB Fusion supports RGB LED Strips in 7-Colors, High Quality Audio Capacitors and Audio Noise Guard Design, Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers and APP Center Including EasyTune and Cloud Station Utilities. This motherboard is compatible with Windows 10 64-bit, Windows 7 64-bit (must install an AMD Pinnacle Ridge & Summit Ridge CPU) and you have to download the "Windows USB Installation Tool" from GIGABYTE’s website and install it before installing Windows 7. It has also some special feature which make it uniqe from others, these are-BIOS, 3D OSD, AutoGreen, Cloud, Station, EasyTune, Fast Boot, Game Boost, ON/OFF Charge, RGB Fusion, Smart Backup, Smart Keyboard, Smart TimeLock, Smart HUD, Smart Survey, System Information Viewer, USB Blocker, Support for Q-Flash and also Support for Xpress Install.
This Exclusive motherboard support RGB LED Strips in 7-Colors with High Quality Audio Capacitors and Audio Noise Guard Design and Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers, APP Center Including EasyTune and Cloud Station Utilities which make your performance more faster.
