| Price | 9,400৳ |
| Status | In Stock |
| Product Code | 4xgXT6f98HGeMsAm |
| Brand | Asus |
| Motherboard Information | ||
| Chipset | H510 | |
| Supported CPU | Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 | |
| Supported Memory | 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory 10th Gen Intel Corei9/ i7 CPUs support: 2933/ 2800/ 2666/ 2400/ 2133 natively Supports Intel Extreme Memory Profile (XMP) OptiMem | |
| Onboard Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out | |
| Onboard LAN | Intel GbE LAN chip (1 Gbit/100 Mbit) | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| PCI | Intel 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel 11th Gen processors support PCIe 4.0 x16 - Intel 10th Gen processors support PCIe 3.0 x16 Intel H510 Chipset 2 x PCIe 3.0 x1 slots | |
| M.2 Socket | M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) | |
| Memory Type | DDR4 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) | |
| Graphics | 1 x D-Sub * Graphics specifications may vary between CPU types. ** Intel 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update. *** Only Intel 11th Gen processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates. Expansion Slots Intel 11th & 10th Gen Processors | |
| HDMI | 1 x HDMI 2.0 1x DisplayPort 1x VGA port | |

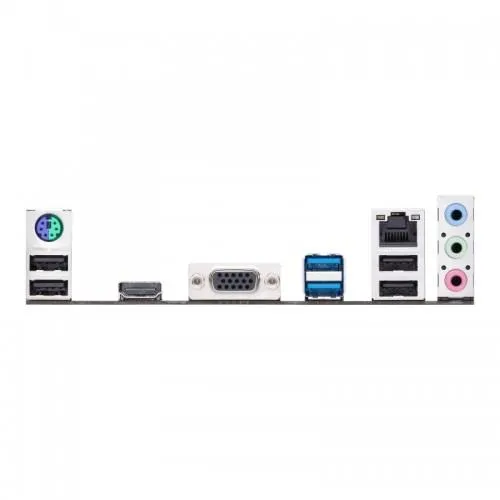

| USB (s) | Rear USB:Total 6 ports 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers supports additional 4 USB 2.0 ports | |
| Supported Storage | Intel H510 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports | |
| Internal I/O Ports | Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x 10-1 pin System Panel header | |
| TPM (Trusted Platform Module) | 1 x TPM module connector | |
| Warranty | ||
| Manufacturing Warranty | 03 Years | |
Asus Prime H510M-E/CSM Motherboard is expertly engineered to unleash the full potential of 10th and 11th Generation Intel processors. It supports Intel LGA 1200 socket, Ready for 11th and 10th Gen Intel Processors. Boasting a robust power design, comprehensive cooling solutions, and intelligent tuning options, PRIME H510M-E/CSM provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. Comprehensive controls form the foundation of the ASUS Prime series. The Prime H510 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity. Asus Prime H510M-E/CSM is engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. The motherboard features comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS. Each header can dynamically reference three thermal sensors. Fan Xpert allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks. M.2 slot supports data-transfer speeds of up to 32 Gbps via x4 PCI Express 3.0 bandwidth, enabling quicker boot-up and app load times with OS or application drives. Asus Prime H510M-E/CSM adds the nuanced details that improve every experience, exclusive codecs that provide pristine audio quality let you customize your system to create a uniquely personal look. The Armoury Crate is a new software utility designed to give you centralized control of supported products, from a single intuitive interface. Armoury Crate provides control of settings for ASUS products, including keyboard and mouse preferences. The Asus Prime H510M-E/CSM comes with 3 years of warranty.
