| Price | 14,500৳ |
| Status | In Stock |
| Product Code | p1A7ri0UdSh6uZEt |
| Brand | MSI |
| Motherboard Information | ||
| Chipset | AMD B450 Chipset | |
| Supported CPU | Supports 1st, 2nd and 3rd Gen AMD Ryzen, Ryzen with Radeon Vega Graphics, 2nd Gen AMD Ryzen with Radeon Graphics and Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4 | |
| Supported Memory | Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHz 1DPC 2R max speed 3866 MHz Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory | |
| Onboard Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out | |
| Onboard LAN | Realtek GbE LAN chip (10/100/1000 Mbit) | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| PCI | AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors 1 x PCIe 3.0 x16 (x16 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 | |
| M.2 Socket | 1x M.2 slot (Key M) (from AMD Processor) | |
| Memory Type | DDR4 Slots 4 x DDR4 memory slots, support up to 64GB | |
| Graphics | 1x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @60Hz Support for HDMI 1.4 version, HDCP 1.4 & 2.3 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1 x VGA port, supporting a maximum resolution of 2048x1280 @60Hz | |
| Max Shared Graphics | 2GB | |
| HDMI | - 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz 1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hzz | |
| USB (s) | AMD B450 Chipset: - 2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel - 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector - 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD CPU: - 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back pane | |
| Supported Storage | AMD CPU: 2 x SATA 6Gb/s ports1 1 x M.2 slot (Key M)1 Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen, Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices AMD B450 Chipset: 4 x SATA 6Gb/s ports | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header | |
| TPM (Trusted Platform Module) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) | |
| Warranty | ||
| Manufacturing Warranty | 03 years warranty | |

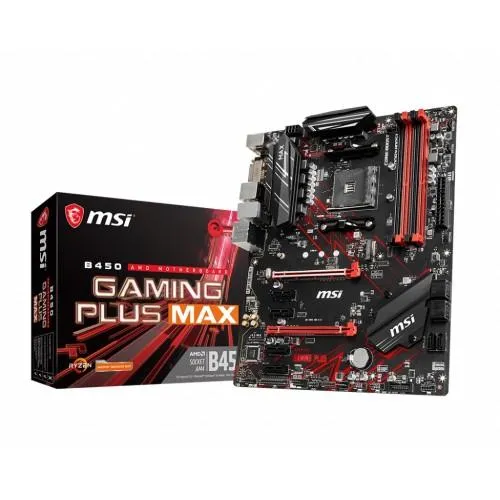

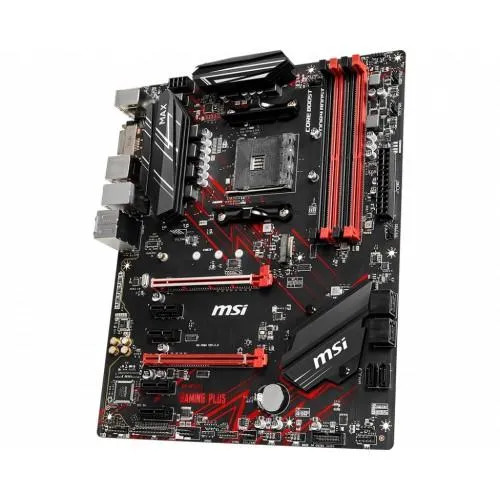

MSI B450 GAMING PLUS MAX AM4 AMD ATX Motherboard Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4 and DDR4 Memory, up to 4133(OC) MHz. You will get Lightning Fast Game experience with TURBO M.2, AMD Turbo USB 3.2 GEN2, StoreMI Technology. Here is added Core Boost with premium layout and fully digital power design to support more cores and provide better performance, DDR4 Boost with Advanced technology to deliver pure data signals for the best gaming performance and stability with Audio Boost that reward your ears with studio grade sound quality for the most immersive gaming experience. And also you simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.

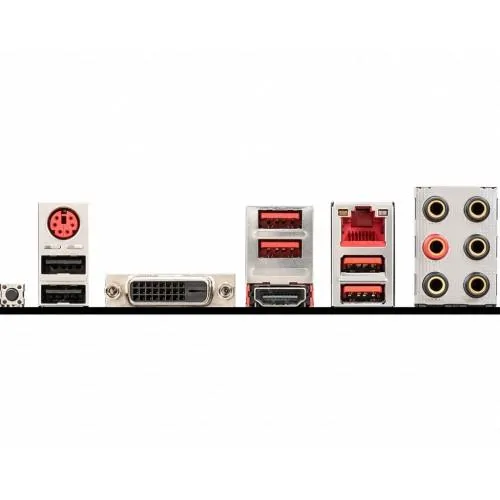

This AMD MSI motherboard is built with Flash BIOS Button, Gaming Device Port, LAN Port, AMD Turbo USB 3.2 Gen2 and Golden Audio Jacks. In this motherboard the Core Boost supports more cores and provide better performance. Gaming heatsinks with Passion Red scheme for maximum cooling and performance, DDR4 Boost optimized traces and isolated memory circuitry, Turbo M.2 NVMe support, up to 32 Gb/s using PCI-Express Gen3 x4, Supports STORE MI. The PCI-E Steel Armor protecting VGA cards against bending and EMI and PCI-E Steel Slot protecting VGA cards against bending and Audio Boost is built with amplifier which optimized gaming audio using best components, with Nahimic3. MSI motherboards are designed to make the system assembly process as convenient as possible. An array of system tuning features and troubleshooting tools are available to ease installation and setup. MSI motherboards are DIY FRIENDLY which is feature with tons of convenient and smart design, such as convenient pin-header keep out zone, friendly SATA & USB location and so on, so DIY users can pick and choose any gaming rig they want. For high performance cooling is essential to sustain intense workloads. MSI motherboards feature a heavy duty heatsink on the MOSFETs for reliable processor power delivery and numerous fan headers with full fan speed control lets builders tune their system cooling the way they like it. It’s BIOS and Software complete your high performance experience with an array of performance enhancing software from MSI. This MSI AMD motherboards are designed with both device and physical compatibility in mind. Pin-headers, SATA, and USB connectors are positioned away from other components and devices. A comprehensive DDR memory Qualified Vendor List (QVL), the result of extensive memory testing and tuning, makes it easier to pick from compatible products. This Exclusive MSI motherboards are built with enhanced audio and advanced LAN networking capabilities that turn any gaming experience into an immerse one and also deliver the highest sound quality through the use of premium quality audio components and get the most immersive sound experience when gaming. MSI motherboards let you enjoy breathtaking, gaming-changing sound.
Each MSI motherboard is built based on the specific topic in order to match different favours and tastes. The MSI also adopts the modern style to design the heatsink through huge surface and sleek but simple cuts in order to make the heatsink and appearance looks ripped and powerful. In this motherboards, MSI Mystic Light provides a complete function to control the RGB light all around the ecosystem. Select the available colors from the palette to match your favorite and mood. This AMD motherboards also combined with neutral color, such as black, grey and silver, as the main background, MSI motherboard can perfect fit different RGB LED effects and strongly shows the gamers tunes. The MSI B450 GAMING PLUS MAX Motherboard comes with 03 years of warranty.
